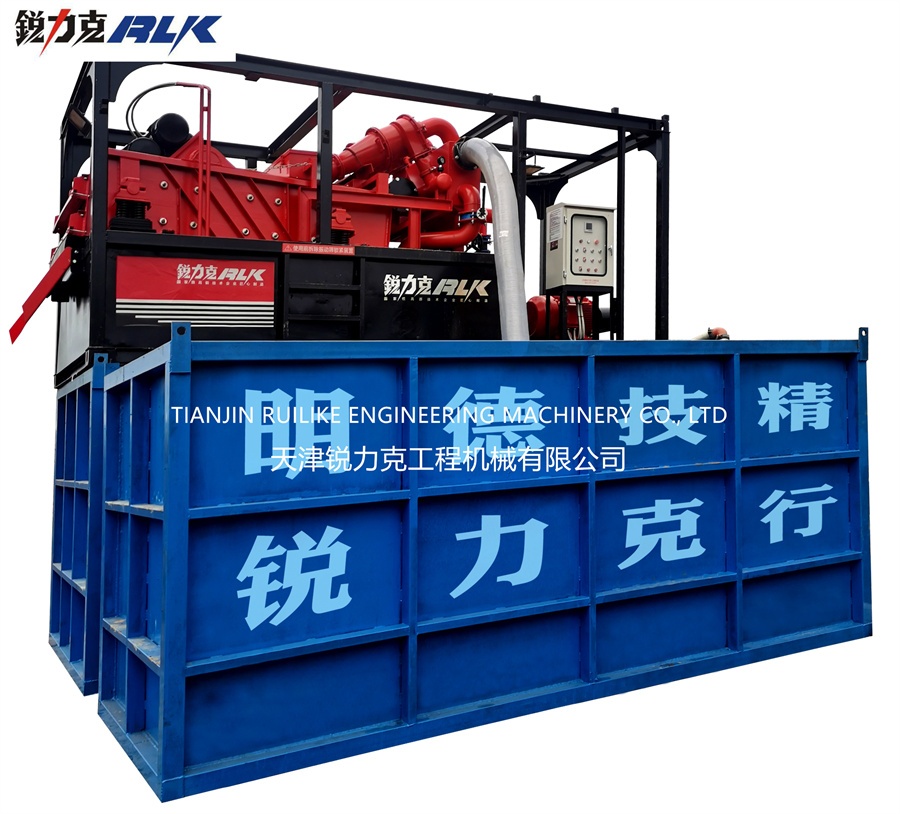

300立方泥浆净化装置 / 泥水分离器
-
300立方泥浆净化装置 300 m3/h Mud Cleaning Equipment
Capacity
处理量
300 m3/h, 1320GPM, 5020LPM
300方/小时

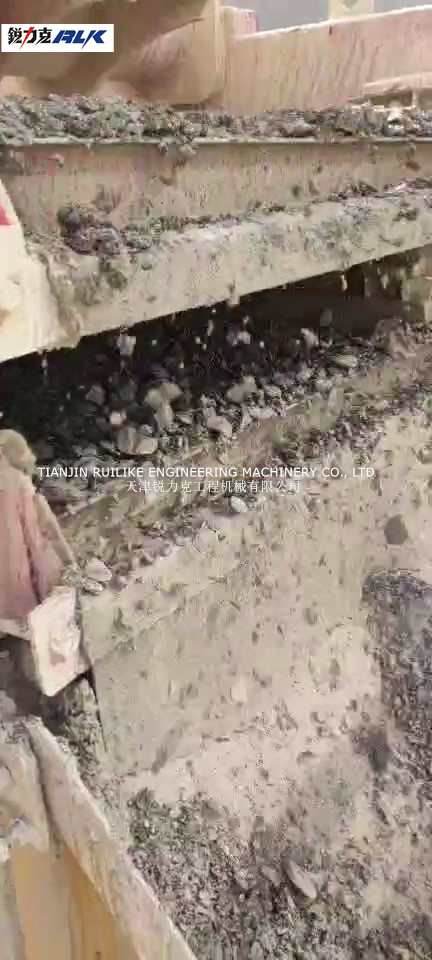

Shale screen
振动筛
Double-layer screens SZS1250
双层筛SZS1250
Vibrating motor
震动电机
OLI (sino-italian joint venture)
中意合资卧龙欧力
Sieve
筛网
1250x700mm, 3 piece each upper and under, polyurethane
1250x700，上下各3片，聚氨酯
Hydrocyclone
旋流器
DN300 * 3, wear-resisting rubber inside
DN350 * 2 耐磨橡胶
Total power
整机功率
79 kW
Pump
净化泵
Horizontal alloy sand pump, 75kW
卧式合金砂泵75kW
Cut point (particle size)
处理细度
＞45μm
Sand content
after purification净化泥浆含沙量
<3% (when the sand content of the incoming raw mud is less than 30%)
<3% (进浆含沙量低于30%)
Inlet
进浆口
4" / 6"
Outlet
排浆口
8"
Dimension
外形尺寸
3560x2250x2650 mm (without the safety fence 不含走道护栏)
4080x2556x2650 mm (with the folded safety fence 含折叠走道护栏，折叠后运输尺寸)
Weight
重量
4800 kgs
Operation mode
运行方式
Remote control or manual 遥控或手动
Voltage
电制
380V/50Hz or customized
380V/50Hz或定制
