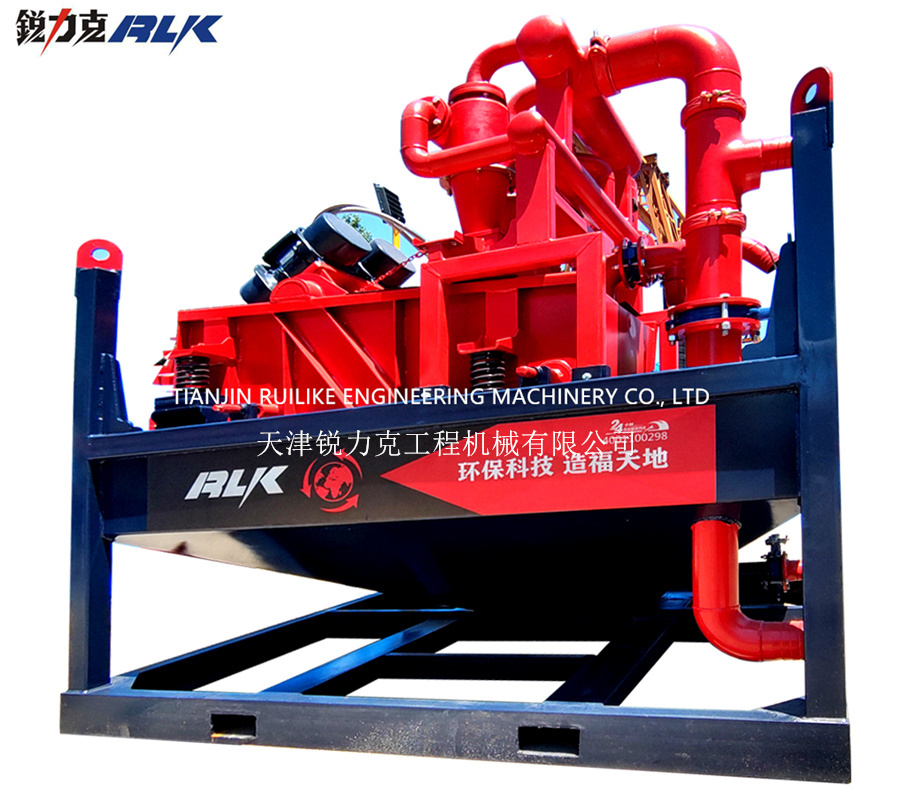

70立方泥浆净化装置（除砂型/除泥型）
-
70立方泥浆净化装置 70 m3/h Mud Cleaning Equipment
70 m3/h Mud Cleaning Equipment
70立方泥浆净化装置Model No.
型号RLKJC70N
RLKJC70S
Type
类型Desilting-type
除泥型Desanding-type
除砂型Capacity
处理量70 m3/h, 310GPM, 1170LPM
70方/小时Shale screen
振动筛Double-layer screens SZS700
双层筛SZS700Vibrating motor
震动电机OLI (Italian reknowned brand)
欧力 (意大利知名品牌)Sieve
筛网Under sieve: 700x1250mm, crevice sieve, stainless steel, 1 piece
Upper sieve: 700x1250mm, weave sieve, stainless steel , 1 piece
700x1250，上下各1片，下层不锈钢缝隙网，上层编织筛网Hydrocyclone
筛网DN125 * 6
DN150 * 3
Total power
整机功率16.5 kW
Pump
净化泵Vertical submersible alloy pump, 15 kW
立式合金渣浆泵15kWCut point (particle size)
处理细度＞30μm
Sand content after purification
净化泥浆含沙量<3% (when the sand content of the incoming raw mud is less than 20%)
<3% (进浆含沙量低于20%)Inlet
进浆口3"
Reflux Inlet
回浆口3"
-
Outlet
排浆口4"
Dimension
外形尺寸2500x1700x2380 mm
2150x1850x2380 mm
Weight
重量2250 kgs
2100 kgs
Operation mode
运行方式Remote control or manual
遥控或手动Voltage
电制380V/50Hz or customized
380V/50Hz或定制Equipped with
配备LED lignting; unattended probe automatic control device
照明LED灯; 探针式自动控制装置，可以做到无人值守
