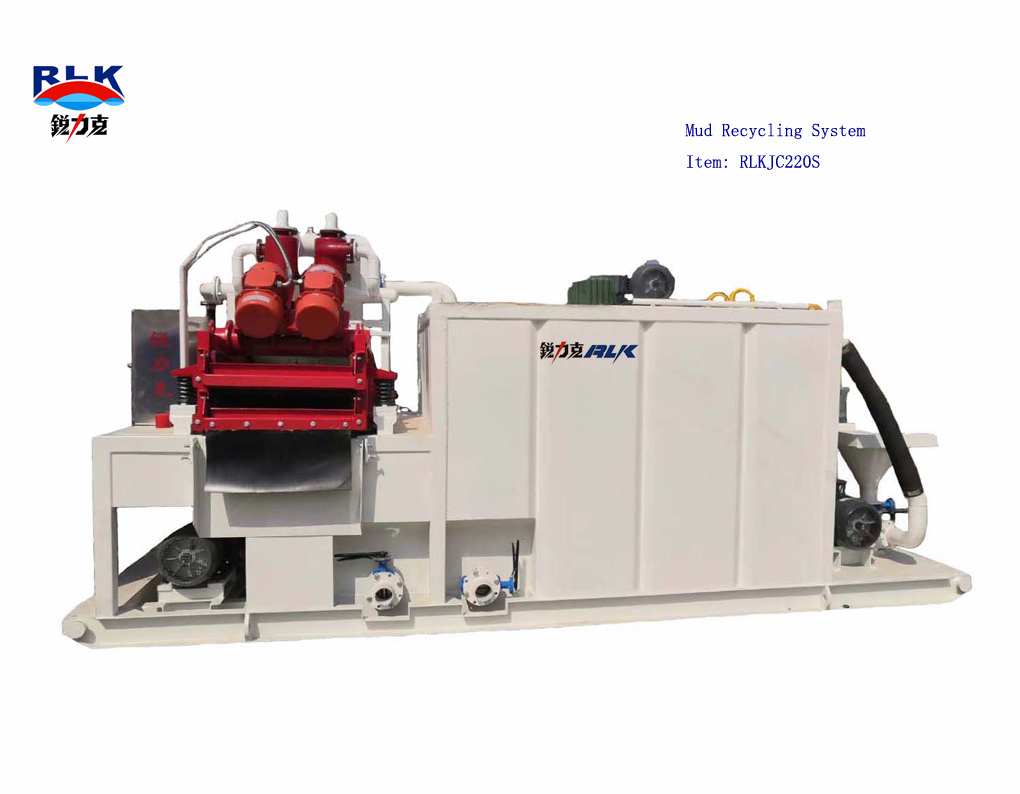

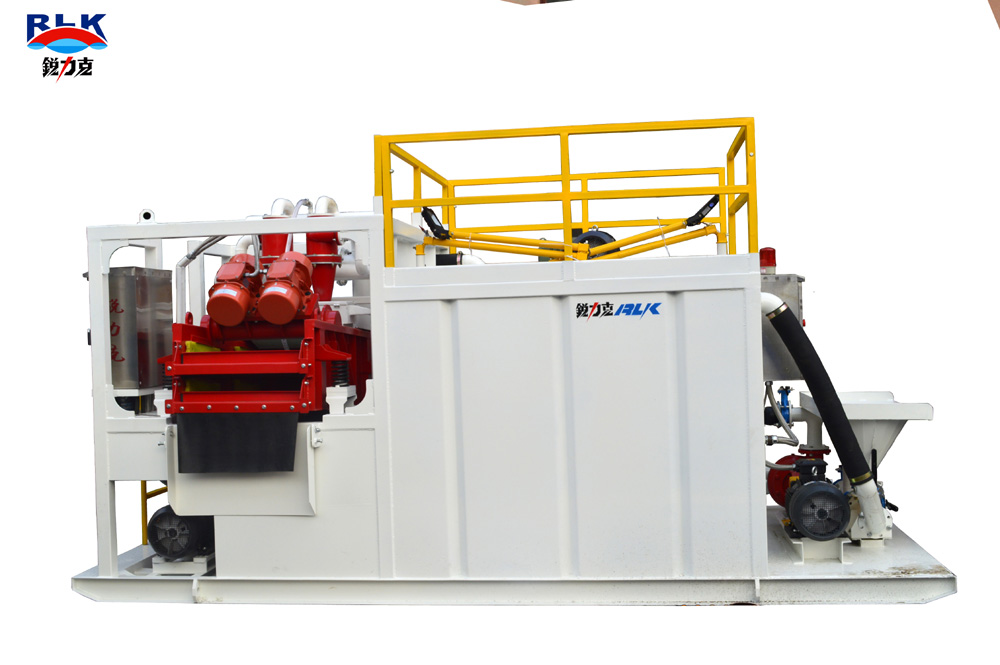

二级组合式净化系统
-
二级组合式集成系统
该产品特征为具备回收泥浆功能，储浆功能，配浆功能，搅拌功能，该产品一吊装，无需拆卸系统上任何设备，设计尺寸复合运输要求。根据客户要求可作二级或三级净化配置。
Two-stage combined integrated system
The product is characterized by the functions of recovering mud, storing mud, mixing mud and mixing. When the product is being hoisted, no need to disassemble any part of the system, and the design size meets the transportation requirements. According to customer requirements, it can be improved to be a 2-stage or 3-stage purification.
型号Model
130GPM
220GPM
308GPM
处理量
Capacity
30m³/h
50m³/h
70m³/h
处理级数Treatment Degree
二级
Class 2
筛网
Screen
DZS700双层筛
Double lays
泥浆搅拌
Agitator Power
5.5～7.5Kw
自储浆容积
Measurement
6-10m³
射流装置
Mud Mixer
11～22Kw
分离粒径
Particle size（d=50)）
45μ
外形尺寸
Facility size
系统外形尺寸会根据客户要求定制容积而不同。
System size be bespoken as customer’s order
